DESCRIPRION

Our company is pleased to introduce you the absolutely newest hit in waste water treatment – NEW NANO membranes which are the world top hit! We are the first producer of membranes like these ones. This is the best solution for water treatment which was invented in cooperation with a technical university from the Czech Republic! This might be a solution in the places where either the insufficient water quality occurs or where people are interested in economical and ecological behaviour. It is possible to solve all the scopes by using this membrane filtration NFM-400. Moreover, this may be a way for cutting down the costs of drinkable and process water. Due to NFM-40 system, it is practicable to transform waste water into non-potable water and rainwater into potable one.

Nanostruktura
nano

DESCRIPTION OF NFM-400

NFM-400 has absolutely unique nanostructure of composite membranes with gradient structure which is resistant against siltation. Thanks to these characteristics, this membrane is ideal for a cleaning of various types of water.
NFM-400 is quite highly powerful functional barrier which separates two media avoids a transport of undesirable substances, i.e. selection. A separation membrane is a thin coat which is permeable for some substances and, on the other hand, is impermeable for the others.



The membrane NFM-400 cleans and disinfects communal and sewage waters and biologically reducible industrial waste waters. Membrane filters of water retain and also remove viruses and bacteria – this is the biological cleaning. Cleaned and treated water is comparable with rainwater and it can be used as process water again in the household (for example for a flushing of toilettes, garden watering etc.).

USAGE

  • Steel industry
  • Galvanization industry
  • Semiconductor industry
  • Chemical industry
  • Printing and dyeing industry
  • Pharmaceutical wastewater
  • Water Reuse
  • Food processing
  • Domestic wastewater
  • Detergent wastewater
  • Hospital wastewater
  • Other industrial wastewater
mbr
system

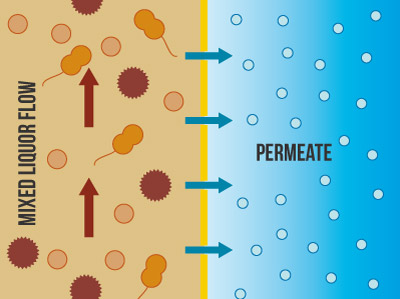

FILTRATION WITH AIR SCOURING

Aeration from the bottom of unit creates upward flow of mixed liquid and air in between membrane cartridges. The upward flow prevents the membrane surface from fouling.

nfm400

SPECIFICATIONS

SPECIFICATIONS  Area
membrane (m2)
Dimensions
L x W x H (mm)
Weight
(Kg)
Size of
pore (µm)
Nominal
flow (l/day)
NFM-200 0,5 510 x 510 x 6 1,4 0,2 200
NFM-400 0,9 1030 x 510 x 6 2,8 0,2 400
